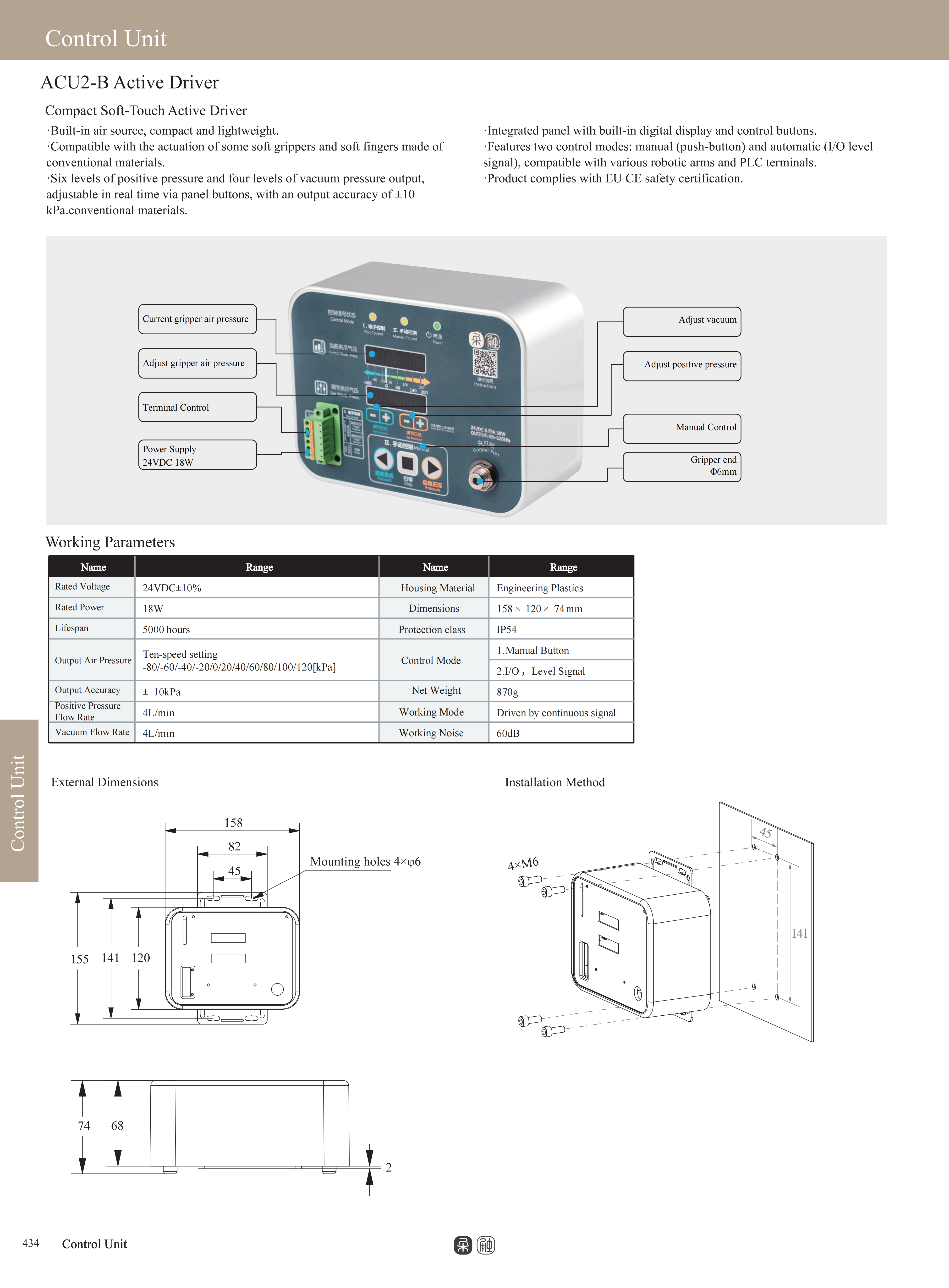

ACU2-B Soft robot gripper control unit suit for demostration

ACU2-B  / Active Control Unit

Compact active controller with flexible SOFT gripper. Small size, light weight, easy installation.

• Built-in air source, compact and light.

• -85~100kPa output pressure range, full support from soft beak to soft fingers and suction cup drive.

• Working positive pressure, working negative pressure can be adjusted by the panel button in real time.

• Integrated panel integrates digital display and operation buttons.

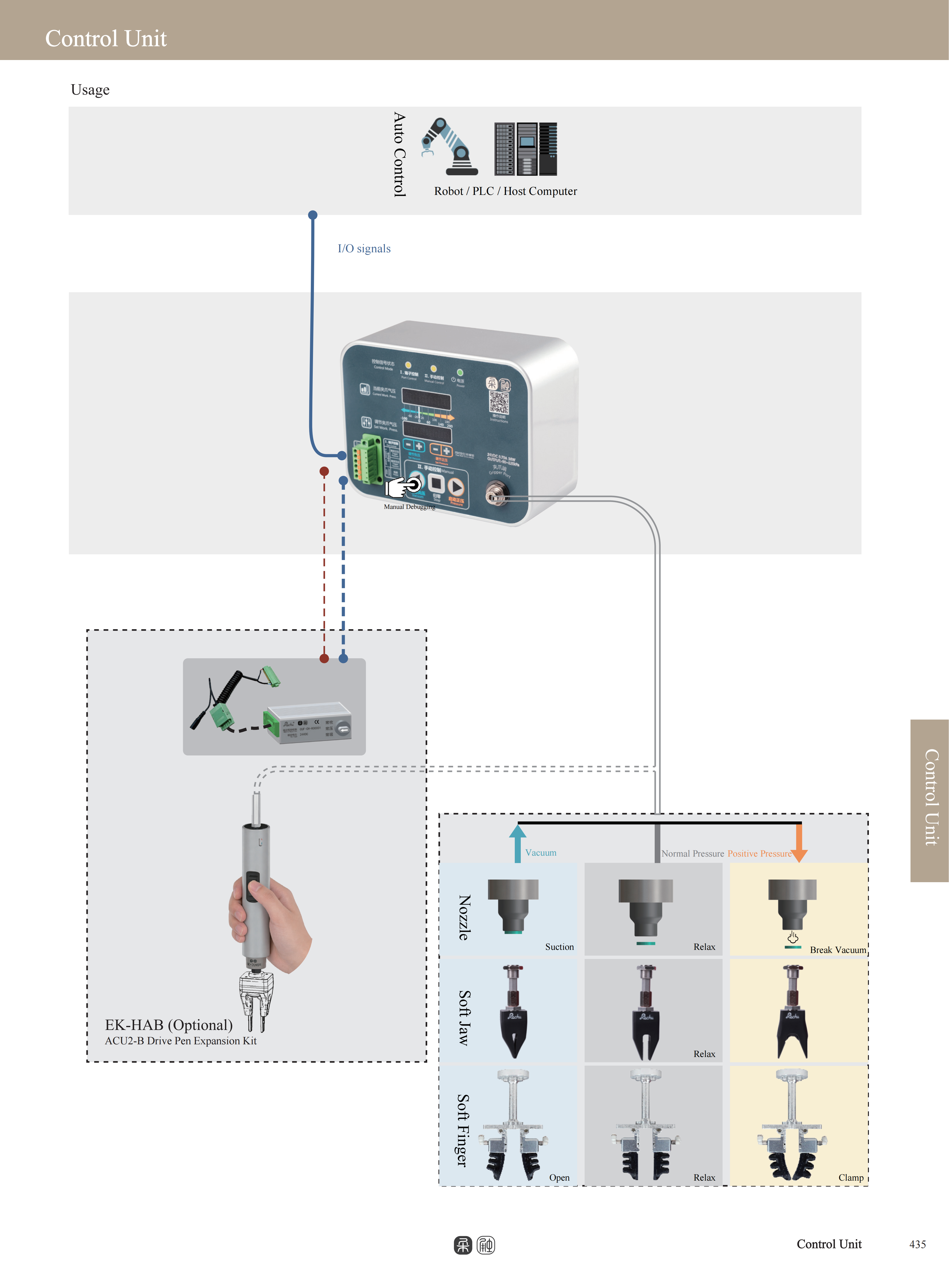

• With manual (button) and automatic (I/O level signal) two control modes, with a variety of mechanical arm, PLC

terminal.

• IP54 electrical protection grade, waterproof and dustproof, suitable for all kinds of bad working conditions, with

intelligent alarm function, safety, stability, no need to worry about disoperation.
